eWEEK Labs Walk-Through: Apple AirPort Extreme

1
2
3
4
5
6
7
8
9
10
11
12
13
1 of 13

eWEEK Labs Walk-Through: Apple AirPort Extreme

The Airport Extremes elegant design is small and unobtrusive, as the three antennae are embedded inside the chassis.

2 of 13

eWEEK Labs Walk-Through: Apple AirPort Extreme - AirPort\s Ports

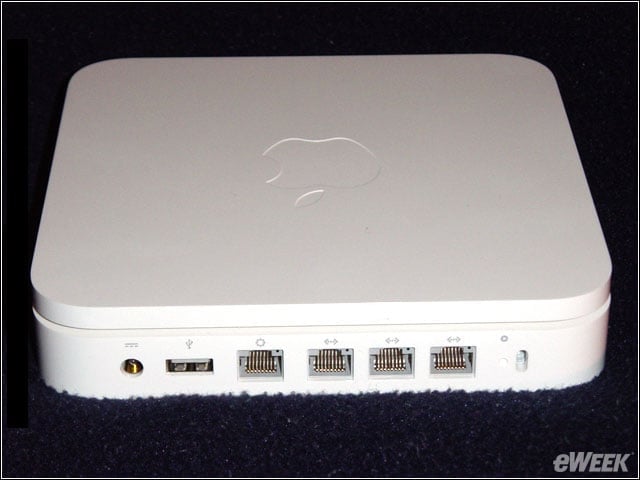

The AirPort includes a three port 10/100 switch (the WAN port doubles as a switch port in bridge mode) as well as a USB port to connect a printer or hard drive to the network.

3 of 13

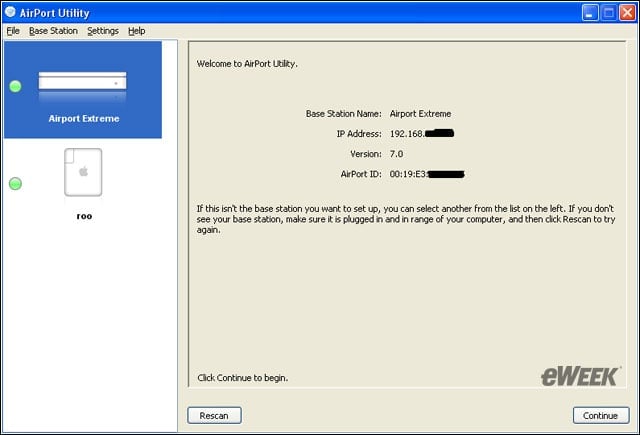

eWEEK Labs Walk-Through: Apple AirPort Extreme - AirPort Utility

AirPort Extreme introduces a new configuration utility that is backwards compatible with older Apple wireless equipment.

4 of 13

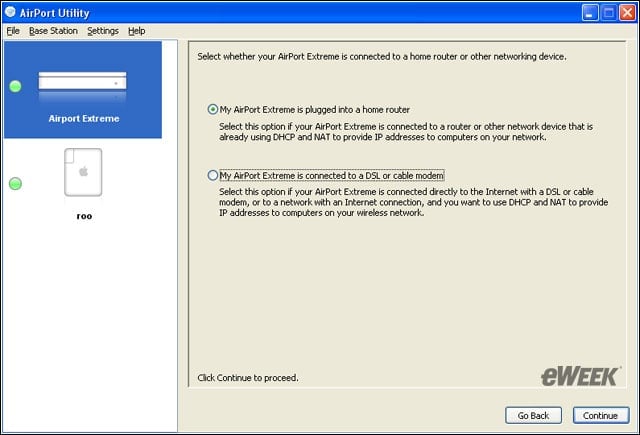

eWEEK Labs Walk-Through: Apple AirPort Extreme - Wizard Network Services

We already had a DHCP server and router on the network. We also had to go into manual mode to configure AirPorts bridge mode to open up another switch port.

5 of 13

eWEEK Labs Walk-Through: Apple AirPort Extreme - Wizard Security

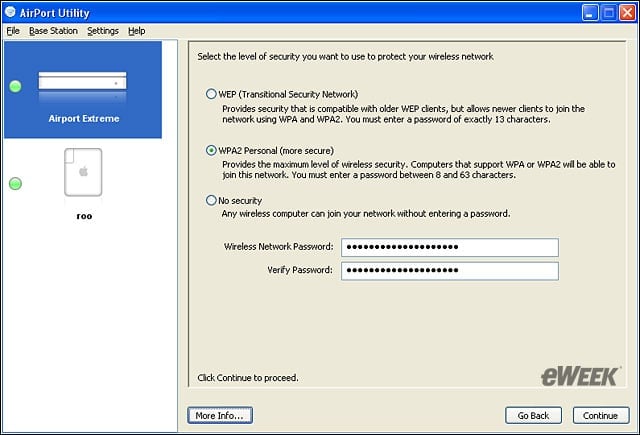

The wizard only opens up the basic security a home user would enable.

6 of 13

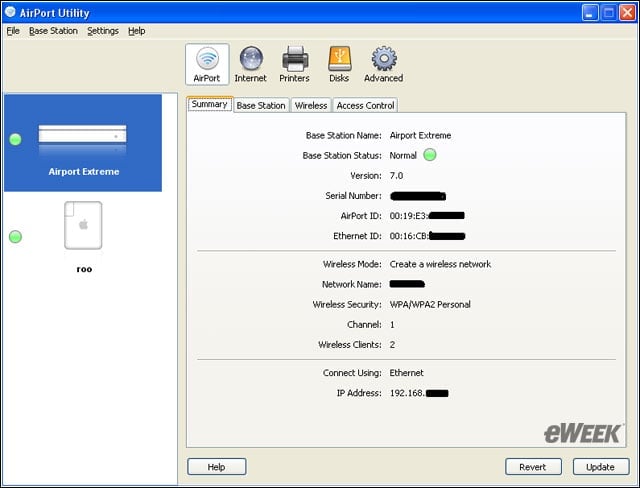

eWEEK Labs Walk-Through: Apple AirPort Extreme - Manual Configuration

The manual configuration mode opens up a wealth of options to configure wireless, disks, logging or printers.

7 of 13

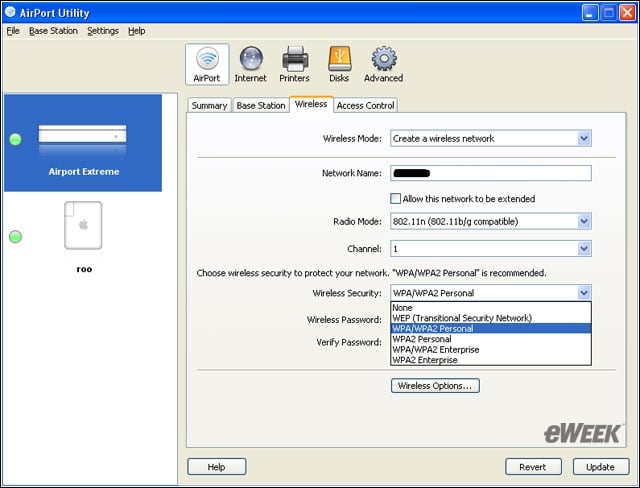

eWEEK Labs Walk-Through: Apple AirPort Extreme - AirPort Wireless Security Options

In manual configuration, AirPort Extreme offers a complete array of wireless privacy options including WPA2 with support for a RADIUS server.

8 of 13

eWEEK Labs Walk-Through: Apple AirPort Extreme - Beefed-up Wireless MAC Security

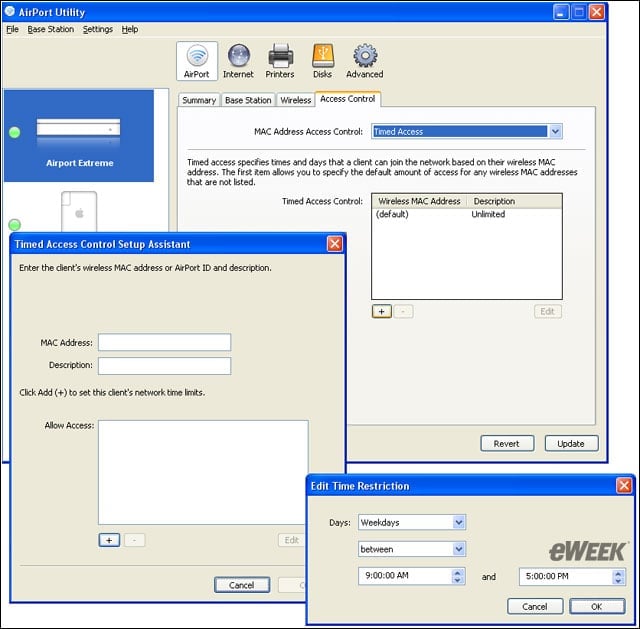

We could set up per-client access time restrictions.

9 of 13

eWEEK Labs Walk-Through: Apple AirPort Extreme - Advanced Wireless Settings

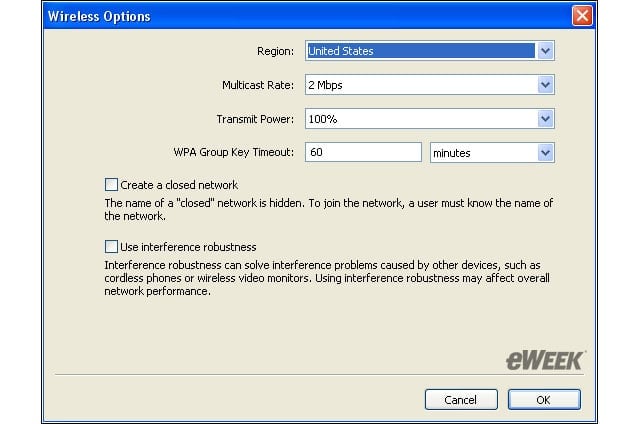

We chose not to hide the SSID or to use Interference robustness.

10 of 13

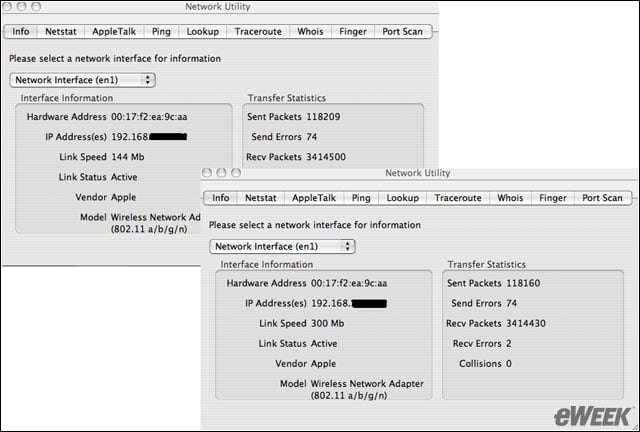

eWEEK Labs Walk-Through: Apple AirPort Extreme - 2.4 v. 5 GHz Clients

To the left, the client attaches to AirPorts 2.4 GHz network, which only uses a 20 MHz channel. To the right, our network is 5 Ghz-enabled using channel bonding.

11 of 13

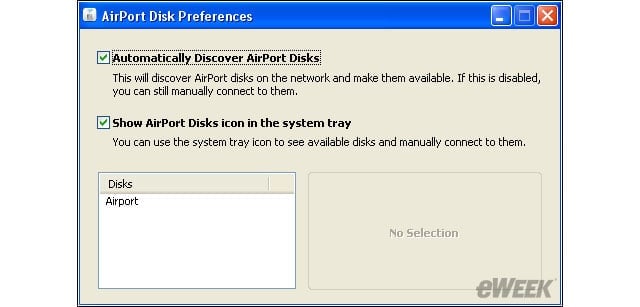

eWEEK Labs Walk-Through: Apple AirPort Extreme - System Tray Resident Applet

We could easily identify and access AirPort-enabled USB disks from the system tray applet.

12 of 13

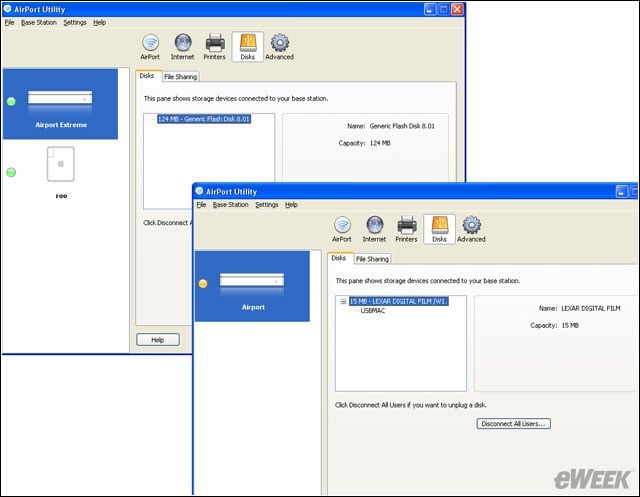

eWEEK Labs Walk-Through: Apple AirPort Extreme - AirPort Recognizes USB Disks

In the foreground, AirPort correctly identifies our disk and volume. In the background, the AirPort fails to recognize the Windows-formatted disk.

13 of 13

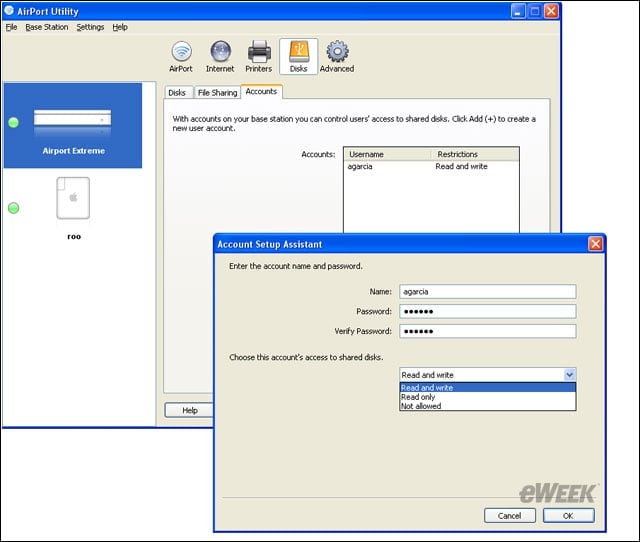

eWEEK Labs Walk-Through: Apple AirPort Extreme - Different Ways to Access USB Disks

We could set up individual user logins to access AirPorts USB disks.
