Dashboard

The AirMagnet WiFi Analyzer Pro provides a variety of WLAN tools, including a dashboard that shows network utilization and other characteristics at-a-glance.

2 of 10

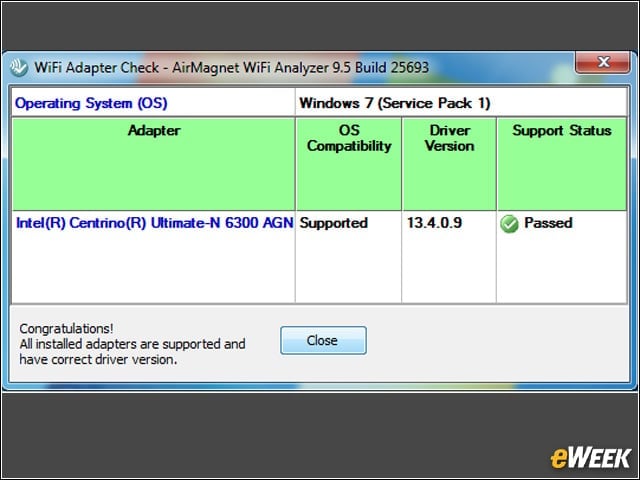

WiFi Adapter Check

The new WiFi Adapter Check is a downloadable utility that displays information about the network adapter and compatibility with AirMagnet WiFi Analyzer Pro.

3 of 10

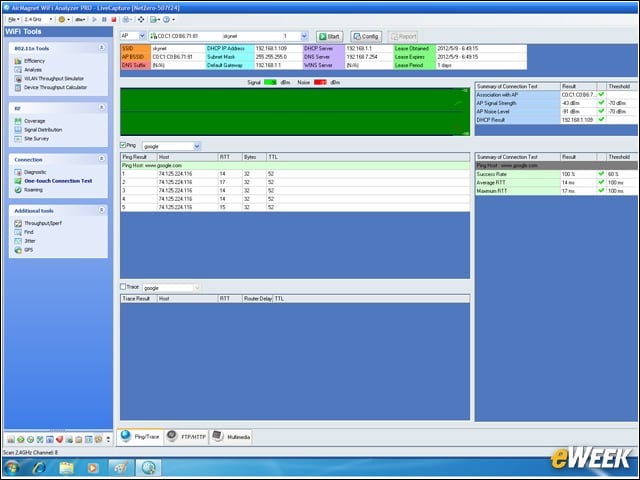

"Sanity Check" Pings

The ping utility provides a basic network "sanity check." Although not shown here, the utility can ping multiple locations simultaneously.

4 of 10

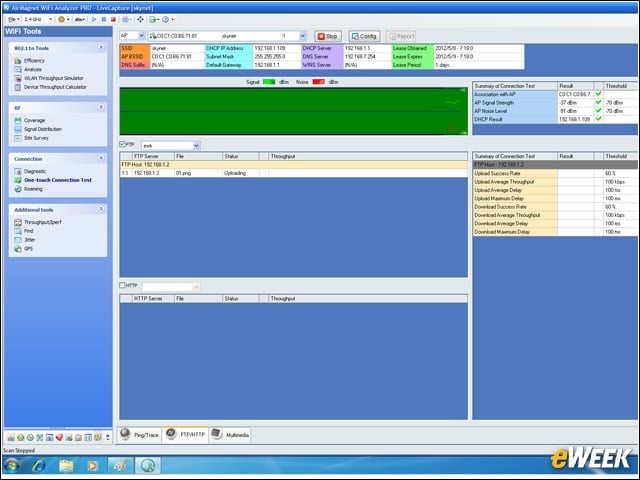

One-Touch FTP Testing

The FTP test in the One-Touch module is shown here in the process of uploading a test file to gather basic network-performance statistics.

5 of 10

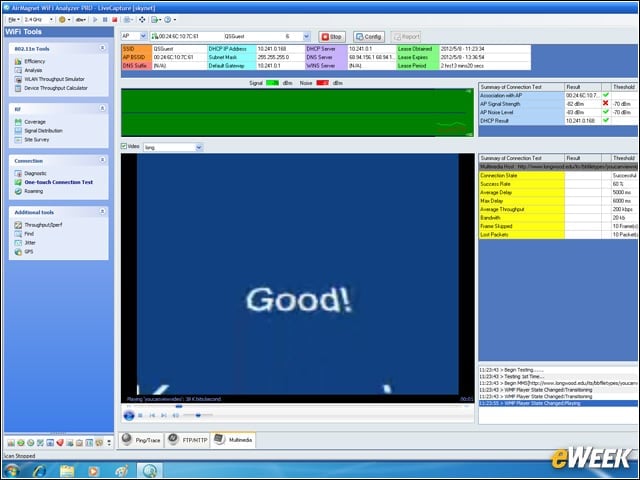

New Multimedia Test

New in AirMagnet WiFi Analyzer Pro 9.5 is a multimedia test that measures WLAN performance using multimedia files.

6 of 10

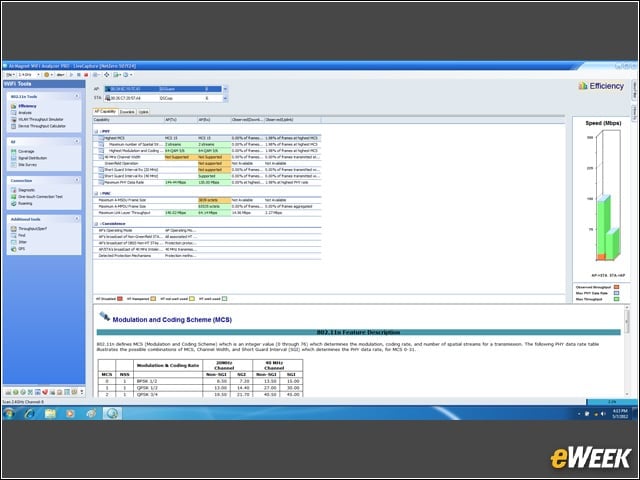

Tuning for Efficiency

AirMagnet WiFi Analyzer Pro shows the configuration of 802.11n WLAN physical and medium access control (MAC) features so that network technicians can tune for efficient network use.

7 of 10

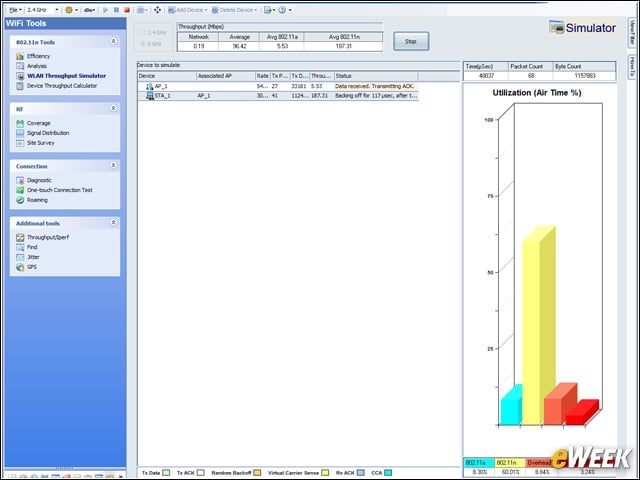

WLAN Throughput

The AirMagnet WiFi Analyzer Pro throughput simulator calculates network throughput, utilization and overhead under various network conditions.

8 of 10

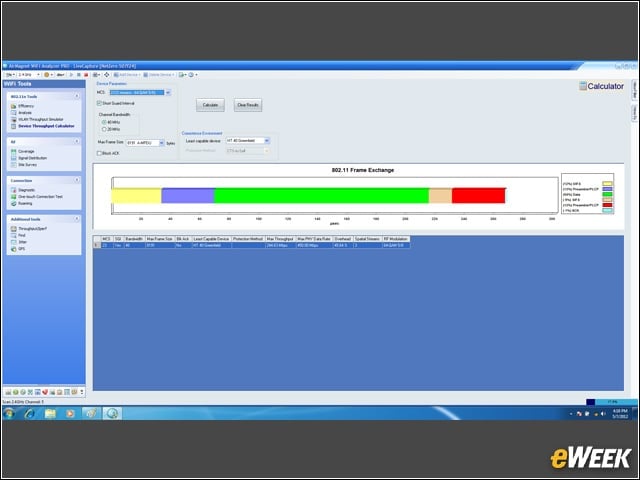

Device Throughput

The device throughput calculator checks a device's theoretical performance.

9 of 10

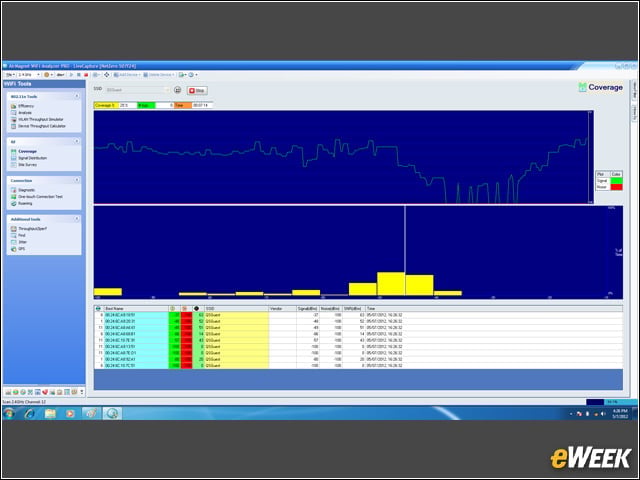

RF Coverage

The coverage utility provides an overview of a wireless network's RF. The dip shown here was created when I walked into the parking lot away from the building and the test network.

10 of 10

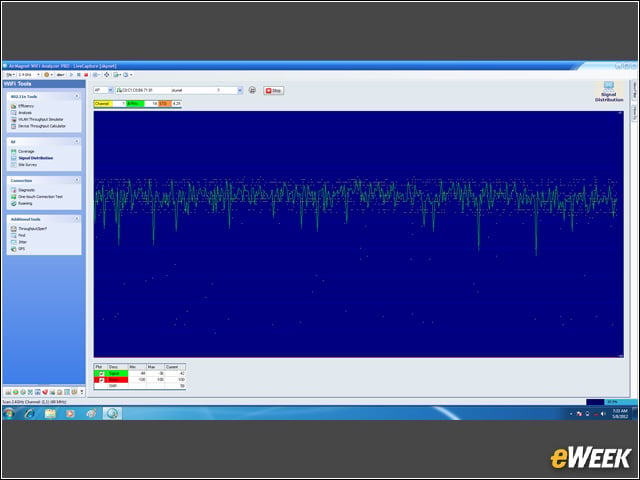

Signal Distribution

The signal-distribution tool detects RF signal problems. This capture shows that the RF signals have a consistent strength, which is good.
