LABS GALLERY: Dell R710 PowerEdge Has Virtualization Squarely in Its Sights

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1 of 16

LABS GALLERY: Dell R710 PowerEdge Has Virtualization Squarely in Its Sights

2 of 16

Front

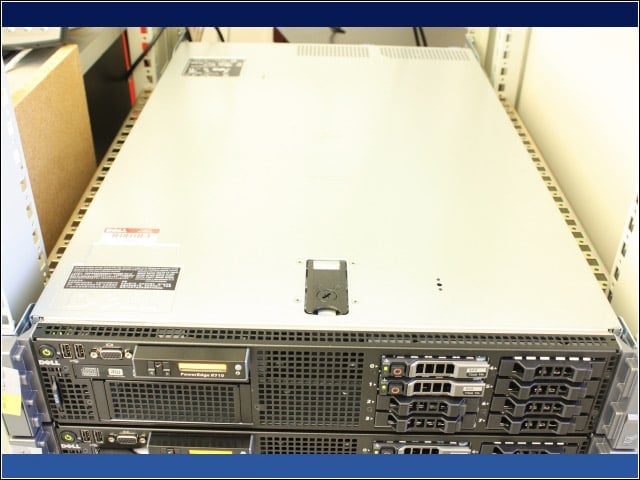

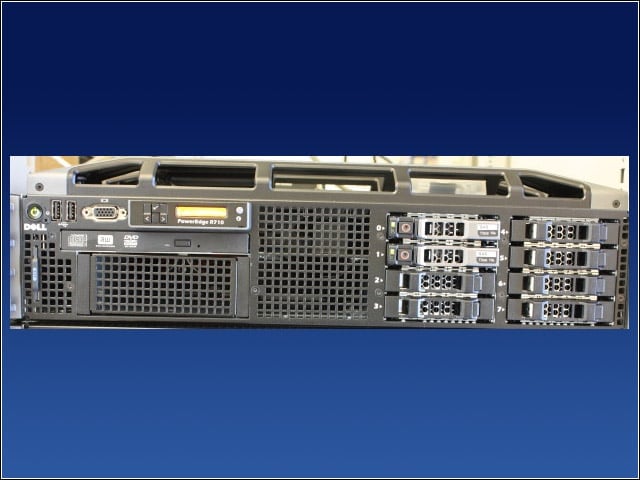

This is the front view of the Dell R710 PowerEdge system in the rack with the bezel removed.

3 of 16

Top

Here is an elevated view of the Dell R710 PowerEdge. The simple access to the top and a tool-less chassis make field maintenance easy.

4 of 16

Top, No Cover

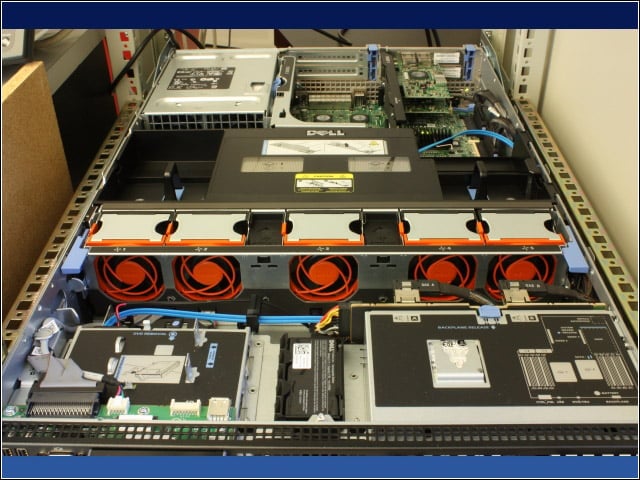

From the front, I've removed the heat shroud that normally covers the processors and memory.

5 of 16

Fans

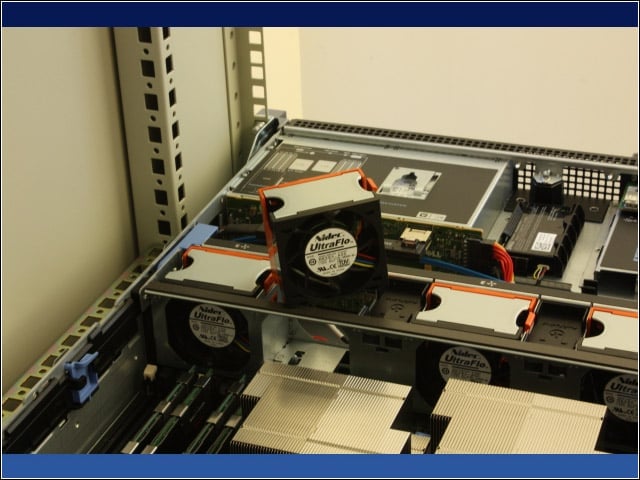

The large fans can be individually replaced.

6 of 16

Power Supply

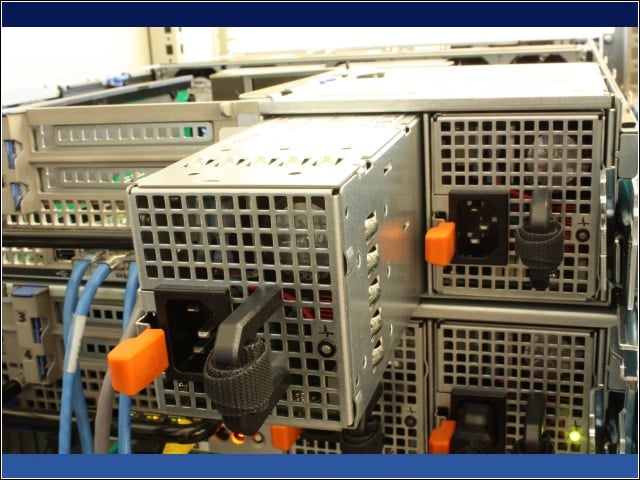

My system had dual, hot-swappable 870-watt power supplies. Lower-power options are also available.

7 of 16

BIOS

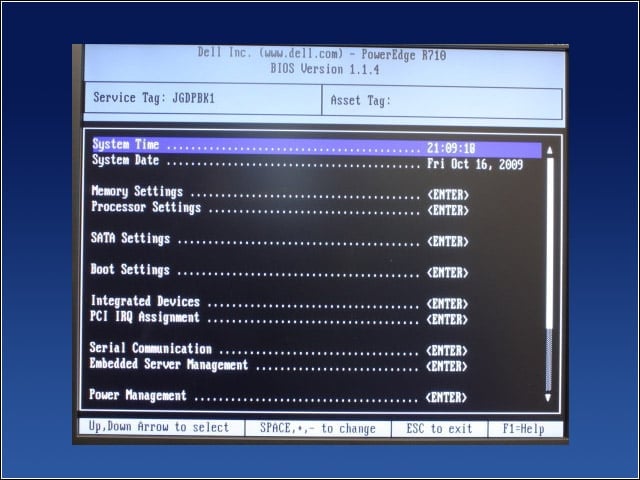

Here is the traditional BIOS start screen—the default startup method for the system.

8 of 16

UEFI

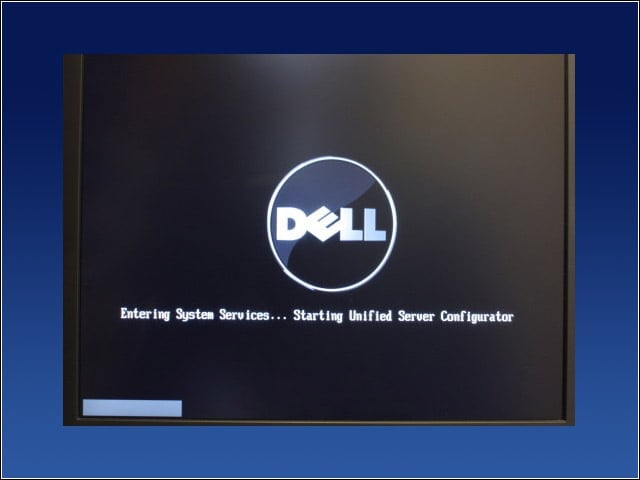

This screen shows UEFI as an optional method for initially booting the hardware system.

9 of 16

UEFI in Action

Shown is the startup screen of the UEFI-based Lifecycle controller embedded system management software.

10 of 16

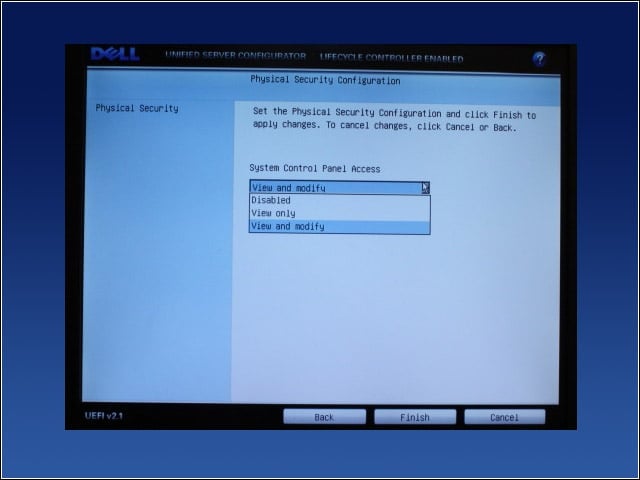

Physical Security Configuration

Many functions in the embedded system mimic BIOS functions.

11 of 16

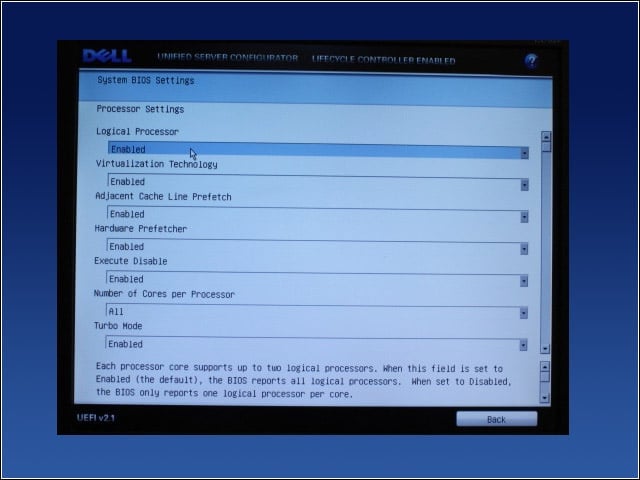

Making Choices

Here's an example of making configuration choices for system startup options.

12 of 16

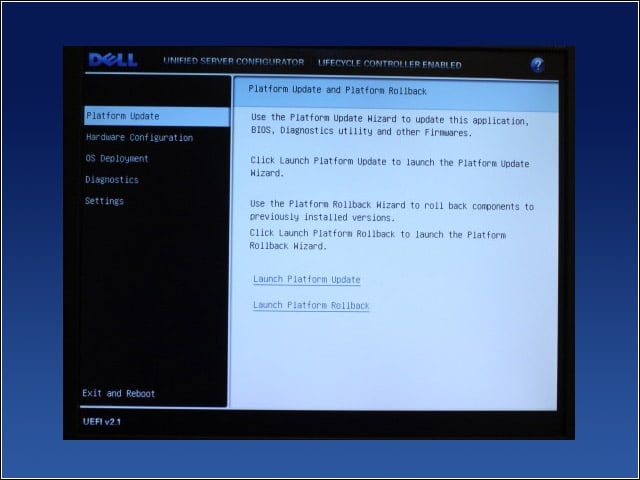

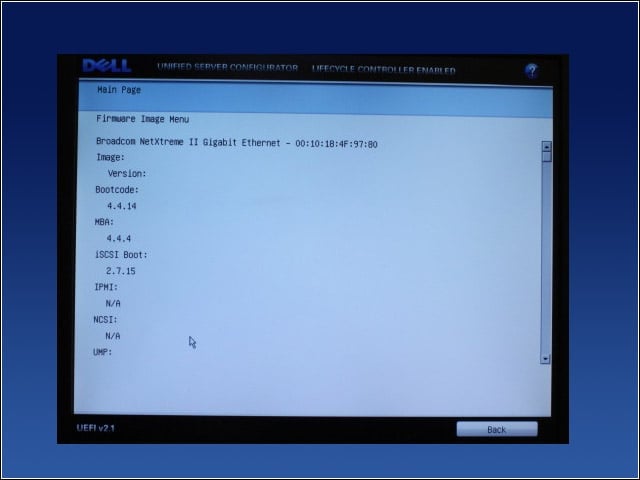

Firmware

Here is where firmware management takes place for various hardware components.

13 of 16

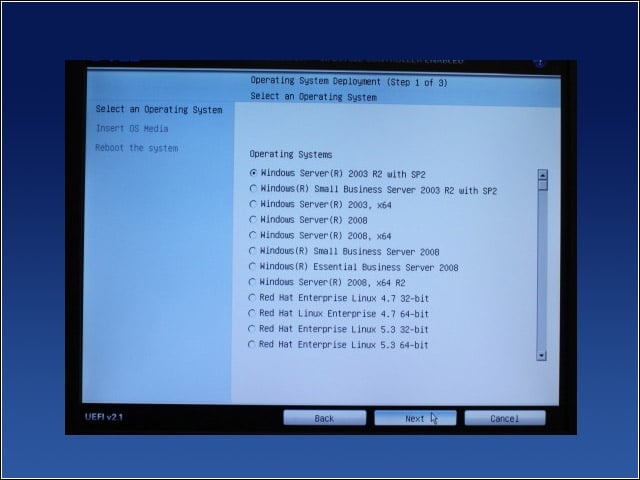

OS Deployment

UEFI provides options to help ease the installation of various commercial operating systems.

14 of 16

Diagnostics

The embedded system management tool provides a number of system diagnostic tools.

15 of 16

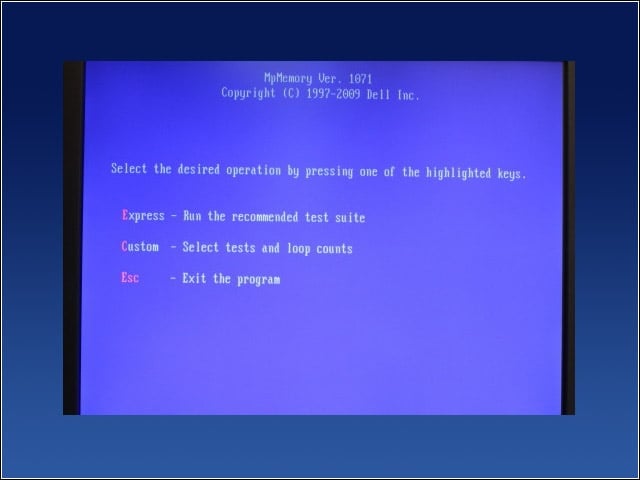

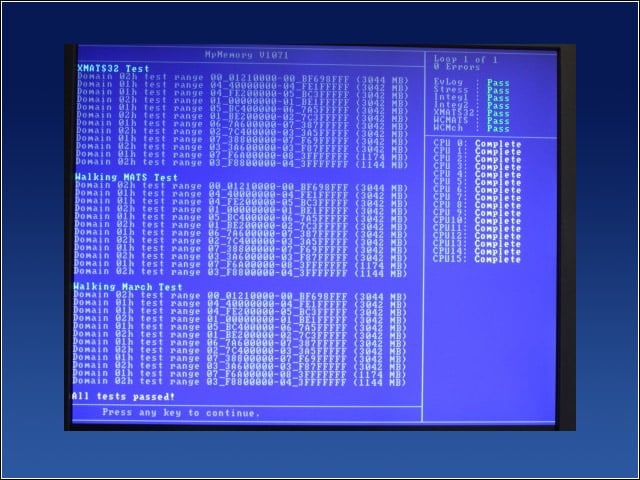

Memory Test

Here you see that the memory test completed successfully.

16 of 16

No Title
