Caltrain Wi-Fi installation

Caltrain/Amtrak employees mount antennas on Caltrain cars at railyard in San Francisco.

2 of 10

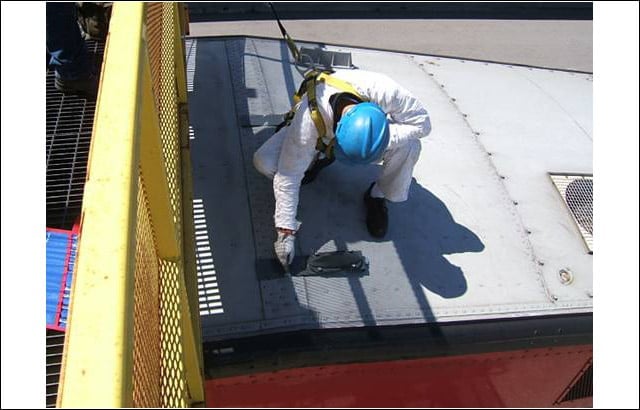

Caltrain Wi-Fi installation - Roof antenna installation

3 of 10

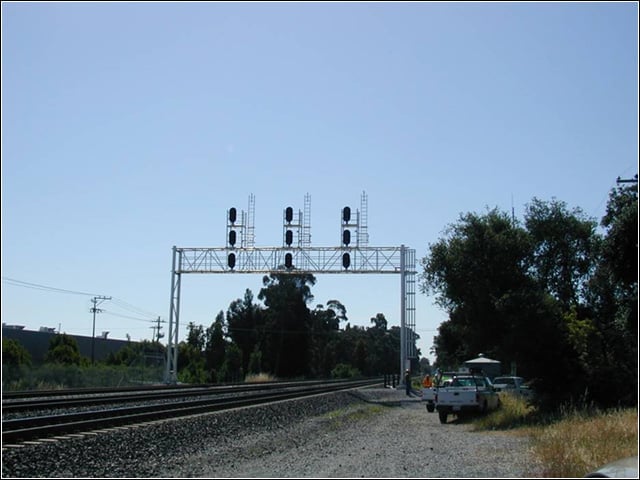

Caltrain Wi-Fi installation - Signal bridge

A signal bridge near the Millbrae, Calif., station provides a location for a single radio/antenna facing south. Signal bridges make excellent antenna sites because of their commanding view of the tracks.

4 of 10

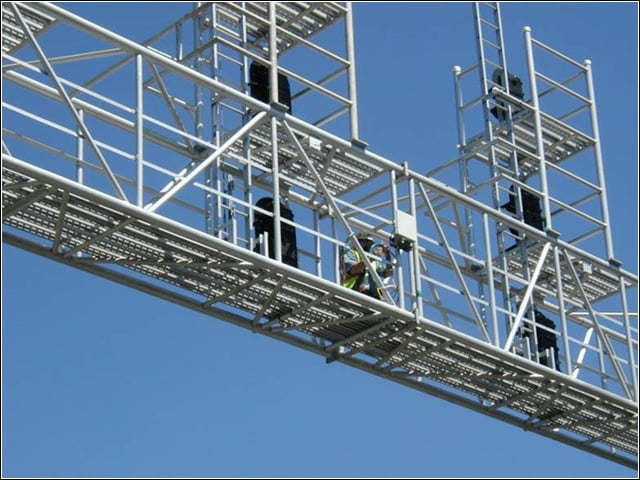

Caltrain Wi-Fi installation - Millbrae transceiver

Near the Millbrae, Calif., station, a worker mounts a transceiver and antenna to the signal bridge.

5 of 10

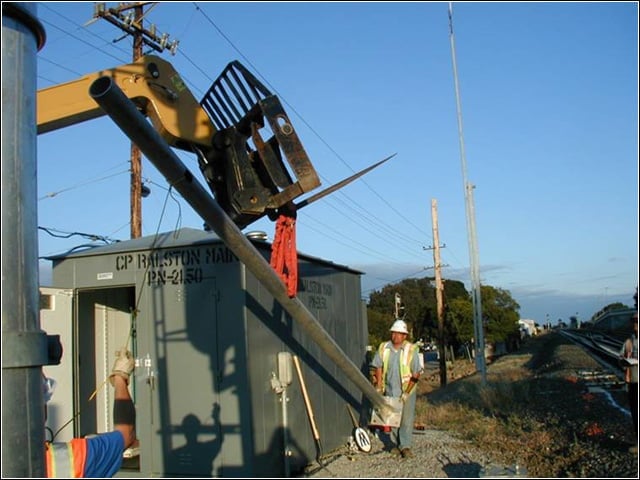

Caltrain Wi-Fi installation - Belmont

Workers erect a new pole near the Belmont station to mount north- and south-facing antennas.

6 of 10

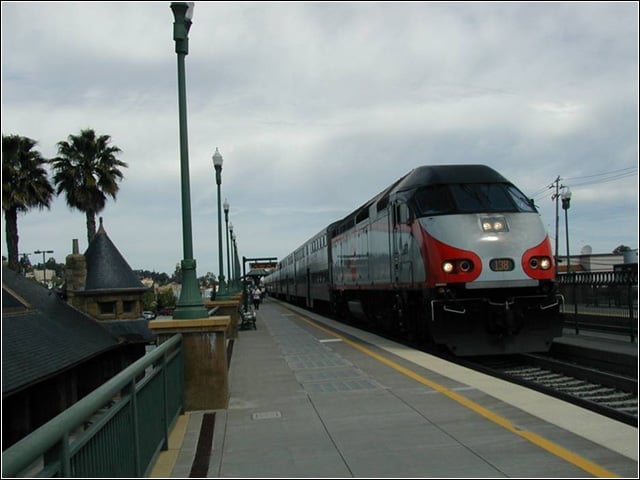

Caltrain Wi-Fi installation - San Carlos

Caltrain Bullet train stopped at San Carlos, Calif., station.

7 of 10

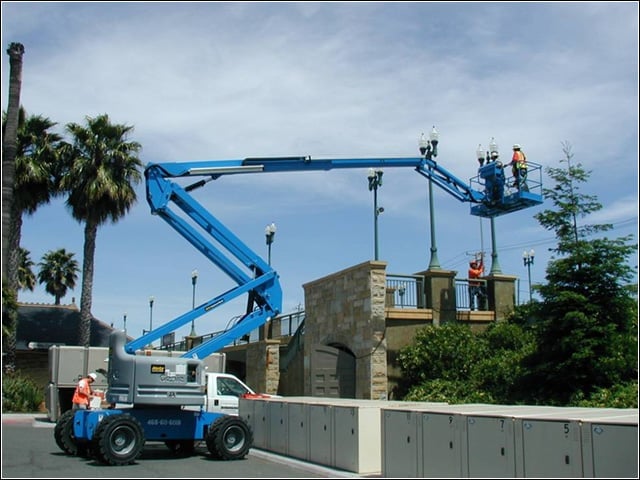

Caltrain Wi-Fi installation - San Carlos - 2

At the San Carlos, Calif., station, workers install antennas.

8 of 10

Caltrain Wi-Fi installation - San Carlos - 3

9 of 10

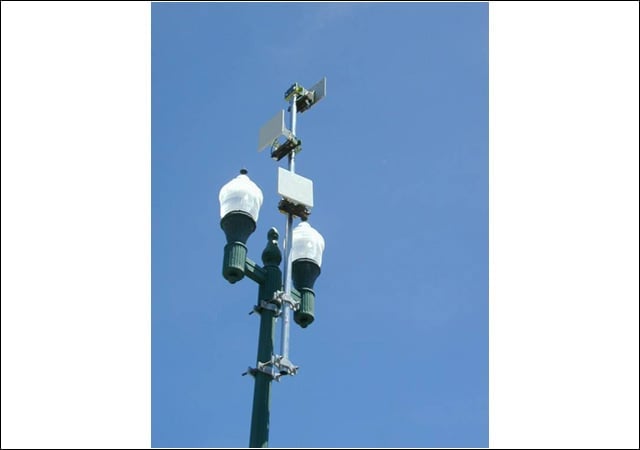

Caltrain Wi-Fi installation - San Carlos - 4

At the San Carlos, Calif., station, north- and south-facing antennas communicate to the train, while a third antenna provides point-to-point backhaul.

10 of 10

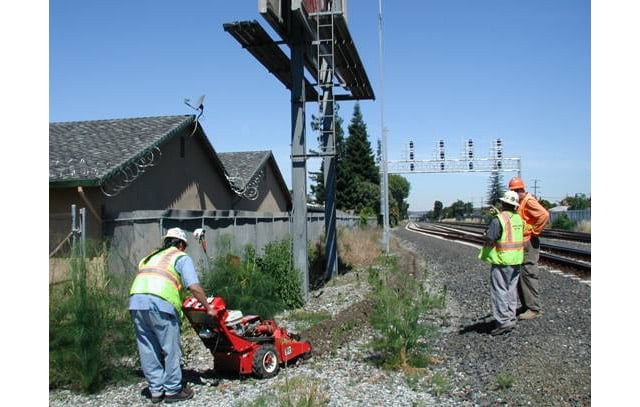

Caltrain Wi-Fi installation - Palo Alto

Along the Caltrain right of way near Palo Alto, Calif., workers dig a cable trench to the base station location.
