Labs Gallery: Dot Hill 2722 Provides Solid Storage in a Small Form Factor

by Matt Sarrel

2 of 10

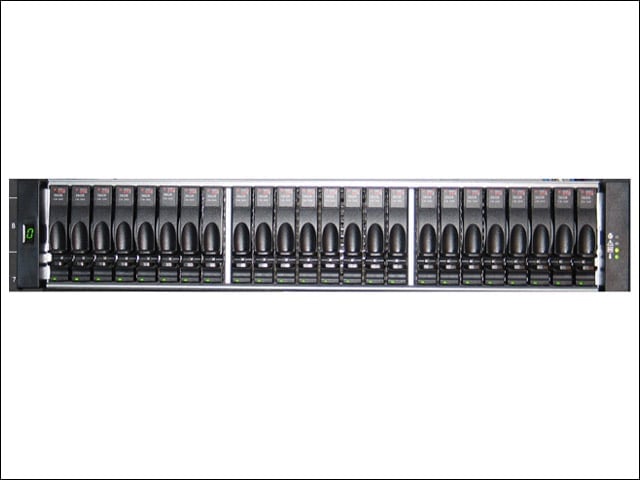

SAS Drives

The Dot Hill 2722 is equipped with 24 15,000-rpm SAS drives.

3 of 10

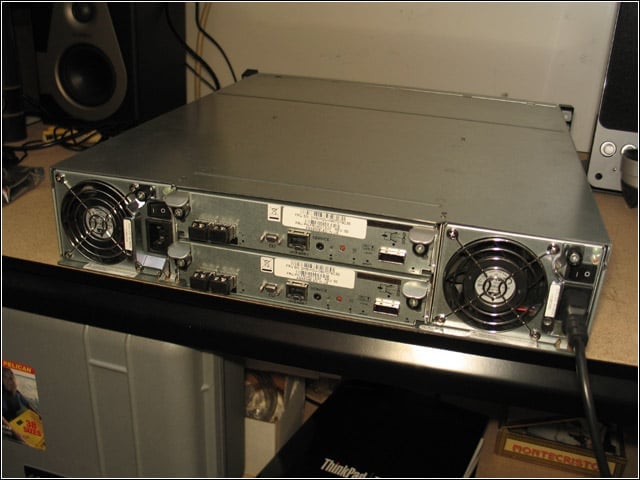

Rear View

Here you see the 2722 from behind, with redundant power supplies and storage controllers.

4 of 10

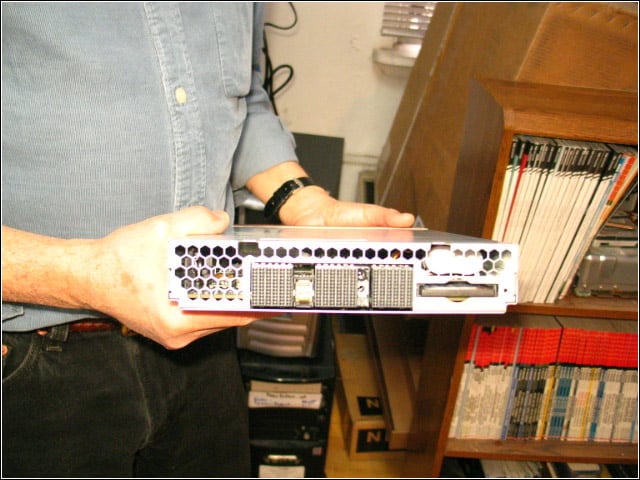

Hot-Swappable

Each of the two controllers is hot-swappable and contains supercapacitors and compact flash memory for cache backup.

5 of 10

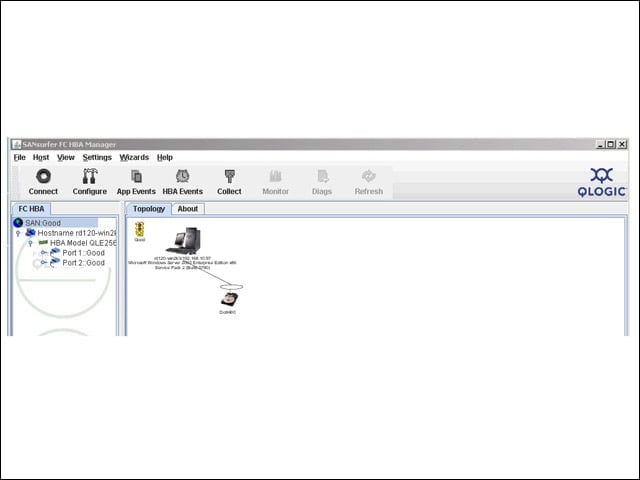

Diagnostic and Management Utility

The QLogic SANsurfer diagnostic and management utility displays plenty of helpful information about the attached Fibre Channel SAN.

6 of 10

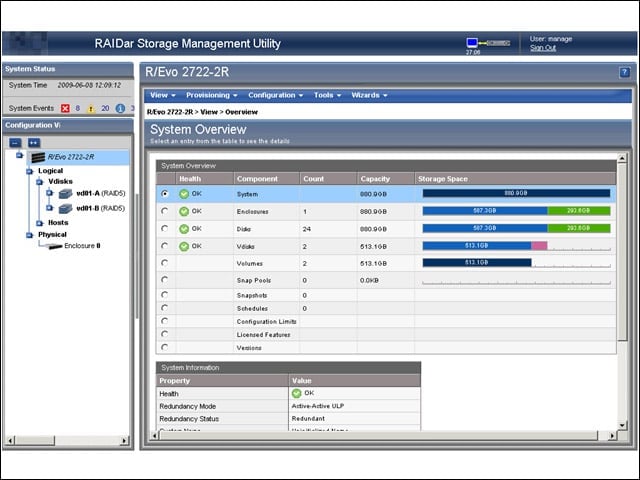

RAIDar

The RAIDar management GUI opens to the System Overview page, which shows the status of various components at a glance. The menu bar running across the top (including View, Provisioning, Configuration, Tools and Wizards) puts all functions a maximum of two clicks away.

7 of 10

Help

Context-sensitive help is thorough and informative.

8 of 10

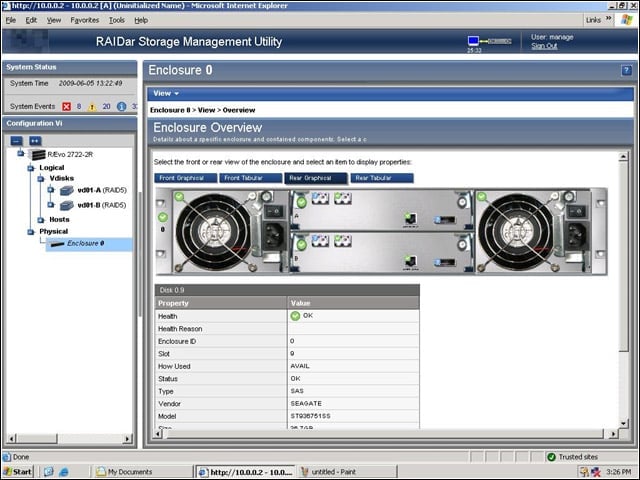

Rear Graphical View

The rear graphical view makes troubleshooting very easy. Here, green checks indicate that everything is operational.

9 of 10

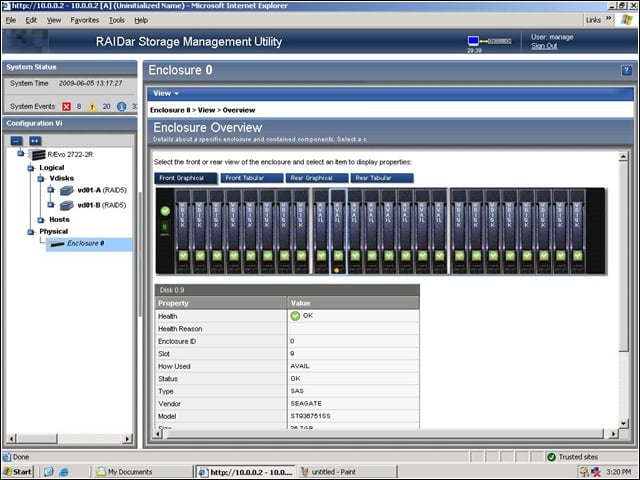

Front Graphical View

The front graphical view also aids in troubleshooting. Clicking on a disk causes an orange LED to flash on the physical drive.
