    Labs Gallery: Quantum DXi7500 a Strong Enterprise Backup Performer

    By
    Matthew Sarrel
    -
    July 9, 2009
    Share
    Facebook
    Twitter
    Linkedin

      PrevNext

      1Labs Gallery: Quantum DXi7500 a Strong Enterprise Backup Performer

      1

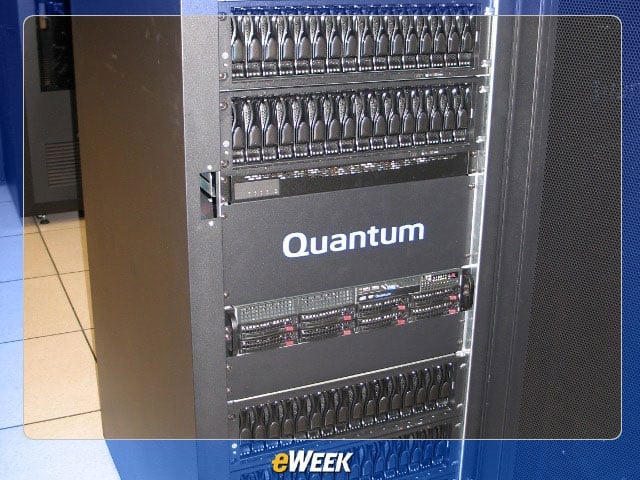

      The base configuration of the Quantum DXi7500 is a single four-post rack.

      2No Title

      2

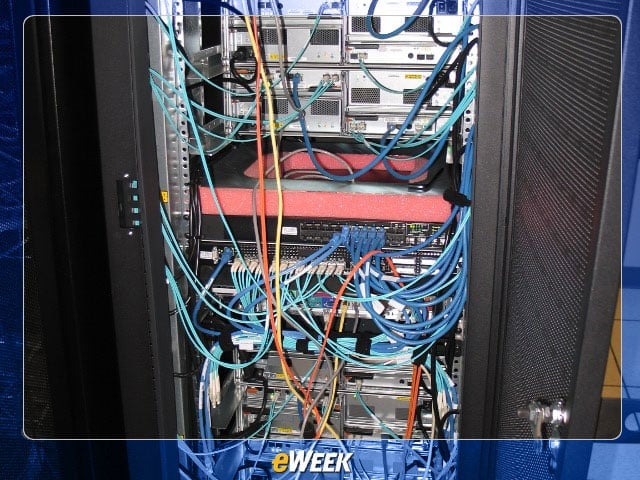

      It’s not as pretty from the rear with a mass of Fibre Channel and Ethernet cables. Built-in power and cable management help keep the system neat and tidy.

      3No Title

      3

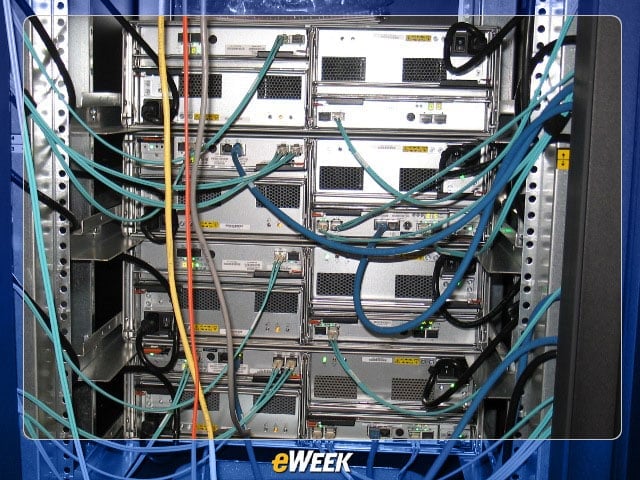

      Shown here is the rear of two storage controllers, each with an attached storage array.

      4No Title

      4

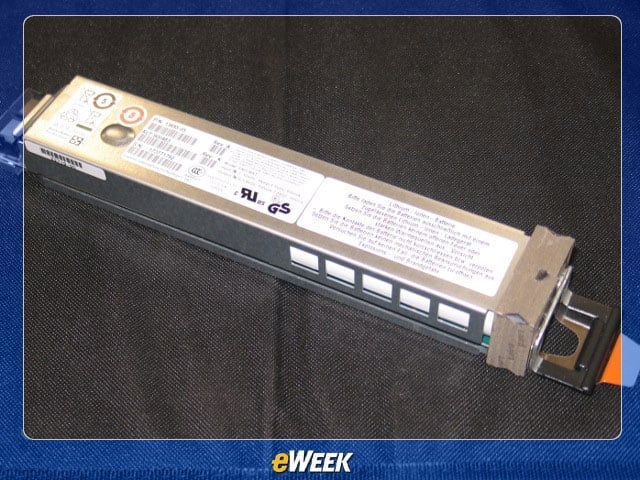

      Each RAID controller has field replaceable lithium ion batteries to maintain cache integrity during a power failure.

      5No Title

      5

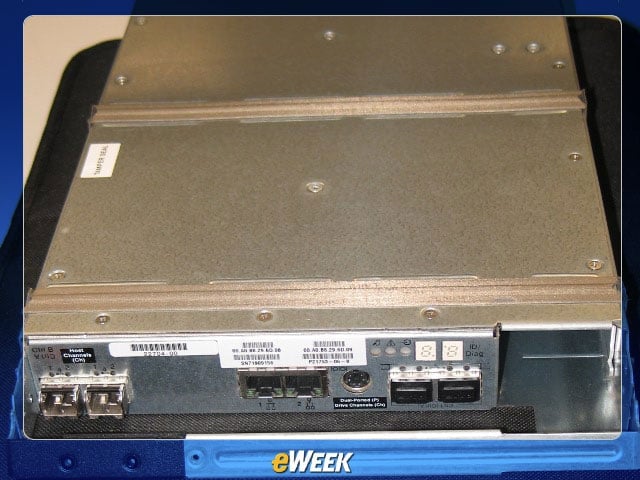

      A hot-swappable SAN controller with a hot-swappable lithium ion battery removed.

      6No Title

      6

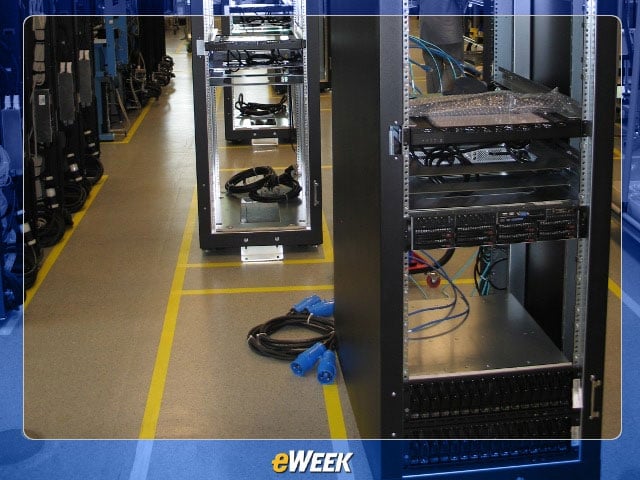

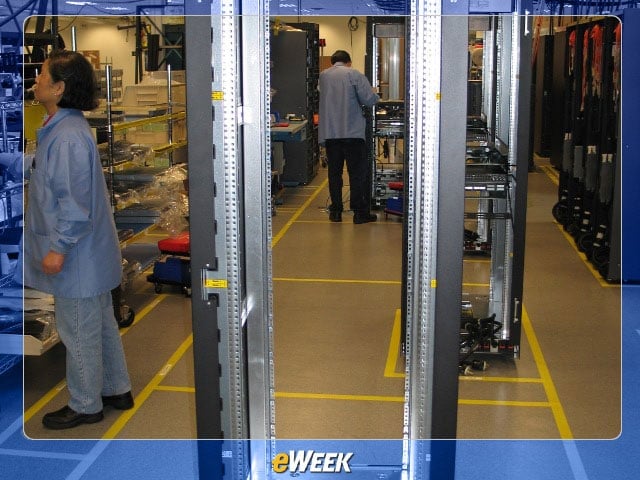

      Each DXi7500 begins life as a simple four-post rack with power management.

      7No Title

      7

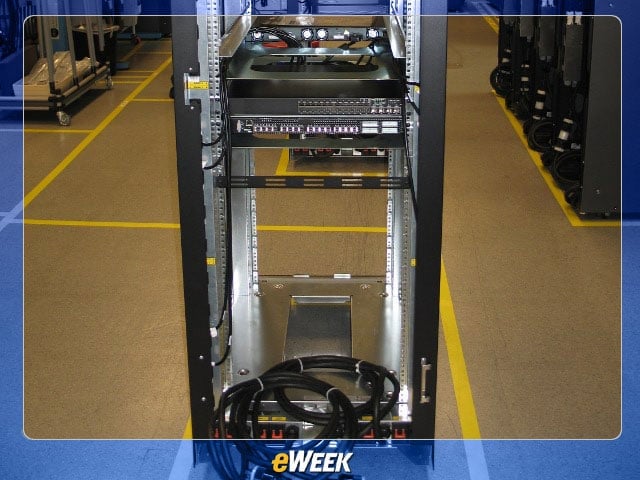

      The next step is to install Fibre Channel and Ethernet switches.

      8No Title

      8

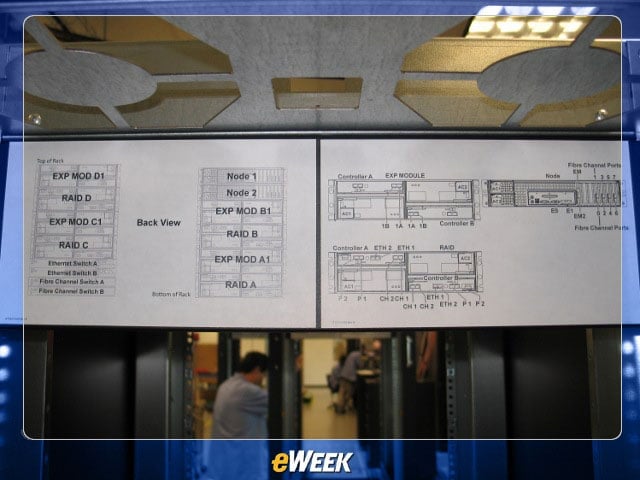

      This rack diagram demonstrates that while SANs have come a long way, they are still complex installations.

      9No Title

      9

      Then the storage controller, arrays and management server are racked.

      10No Title

      10

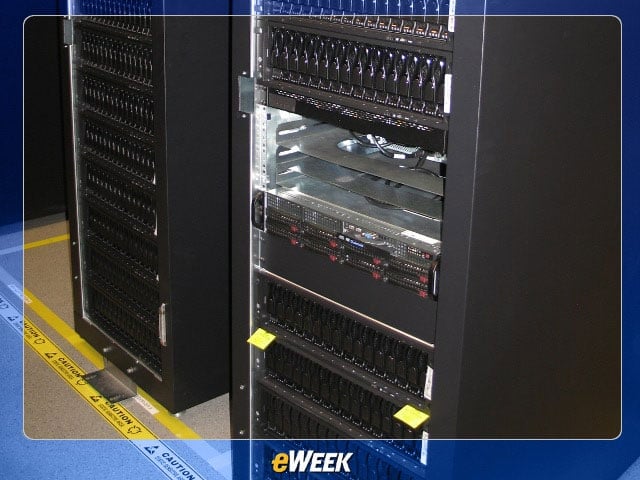

      A fully populated DXi7500 contains 240TB of raw storage in two four-post racks.

      11No Title

      11

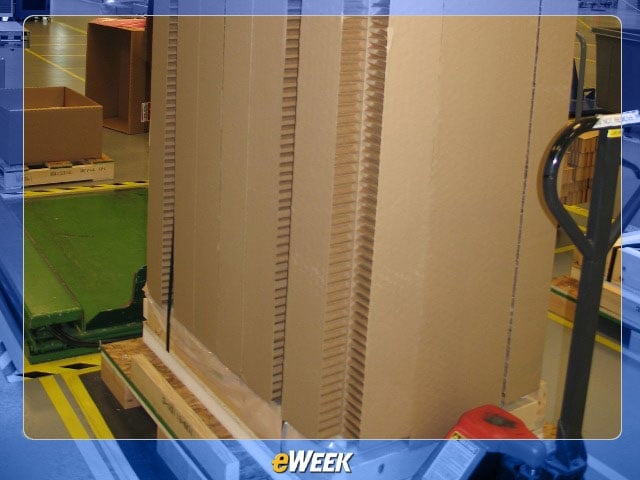

      The storage system is protected by minimal packaging and shipped on its own palette.

      12No Title

      12

      Contributing Analyst Matt Sarrel at Quantum’s Colorado Springs, Colo., assembly facility.

      13No Title

      13

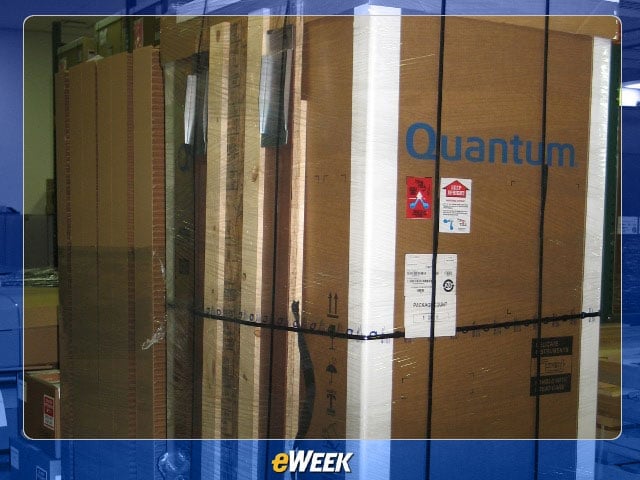

      The DXi7500 ships shrink-wrapped onto its own palette with a built-in ramp (shown on the left). Drop the ramp down and roll the 800-pound unit into place.

      14No Title

      14

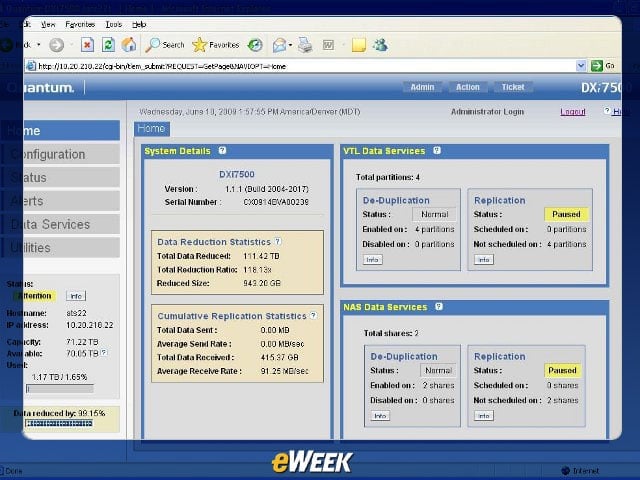

      The home screen of the DXi7500 management GUI provides system, VTL and NAS status at a glance.

      15No Title

      15

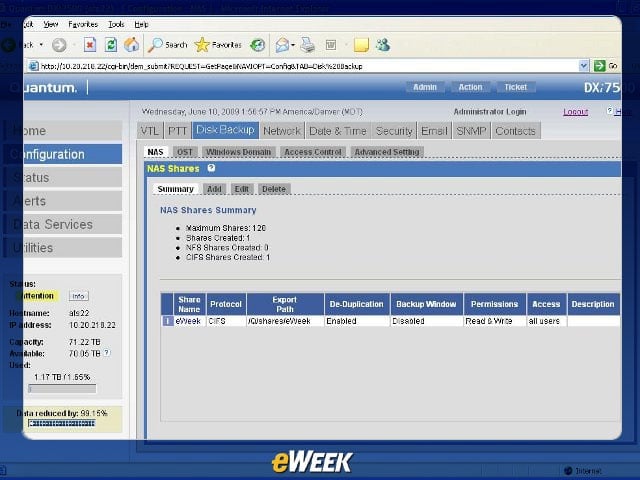

      From the Configuration menu, choose Disk Backup, then NAS, and then add/edit/delete a CIFS or NFS share.

      16No Title

      16

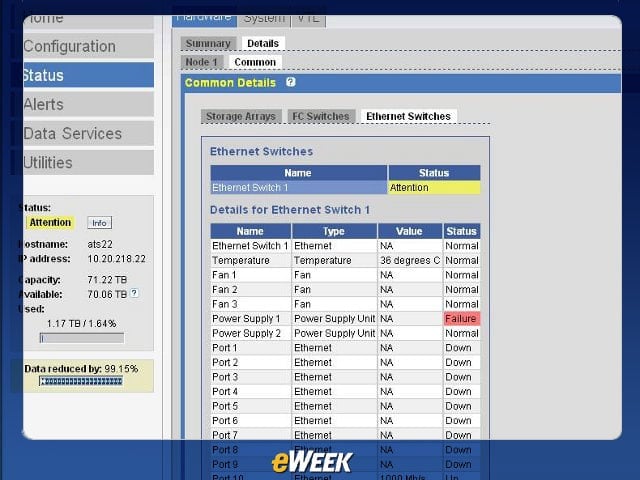

      The Status menu shows detailed hardware, system and VTL status. Here, the system is fully functional yet only has one power supply plugged in.

      17No Title

      17

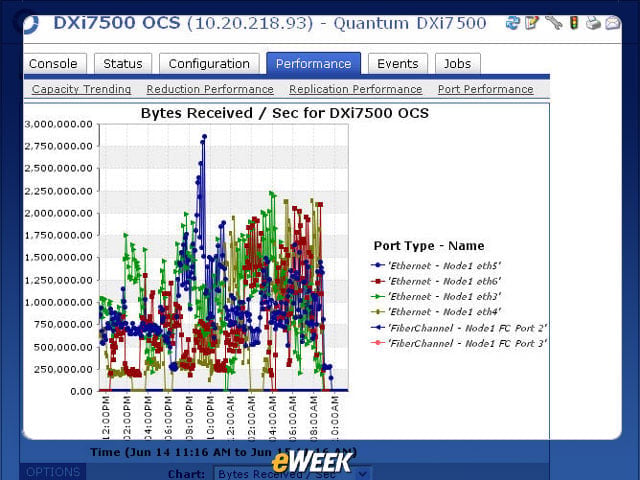

      The StorageCare Vision reporting is quite detailed. Here we can compare Fibre Channel and Ethernet node throughput.

      18No Title

      18

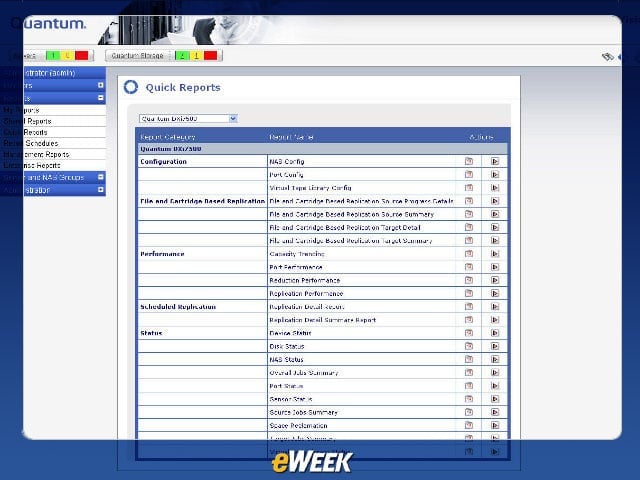

      StorageCare Vision comes with about two dozen preconfigured reports covering status, configuration and performance of the system.

      19No Title

      19

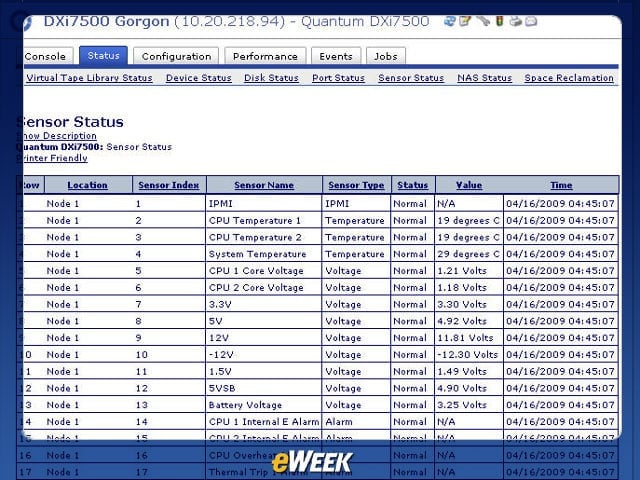

      StorageCare Vision can provide detailed status on just about every physical component of the storage system.

      20No Title

      20

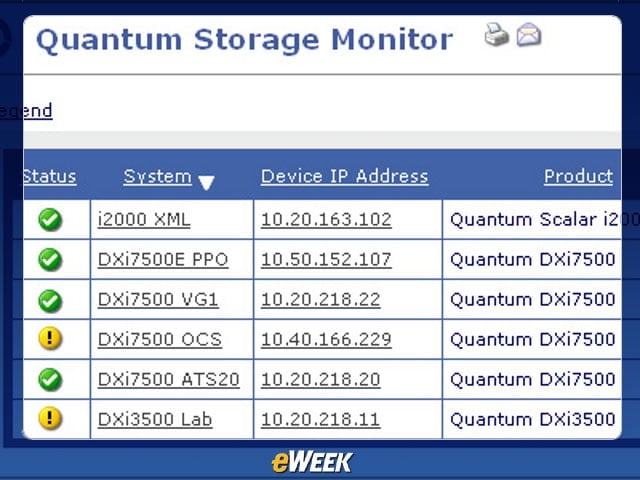

      All Quantum devices can be monitored from a single location with StorageCare Vision.

      21No Title

      21

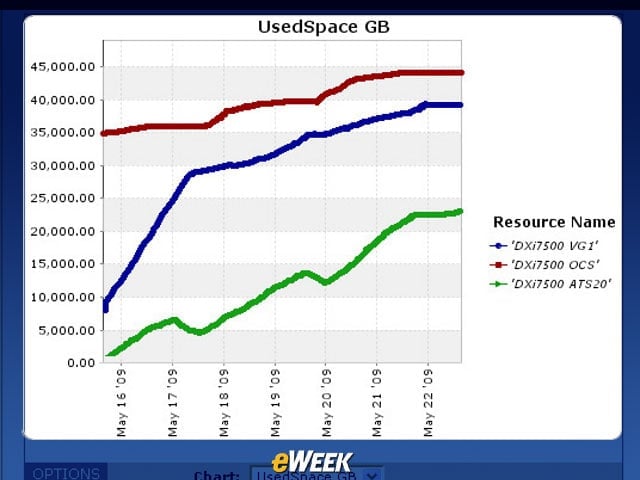

      It’s easy to see trends in disk utilization from the Capacity Trending report.
